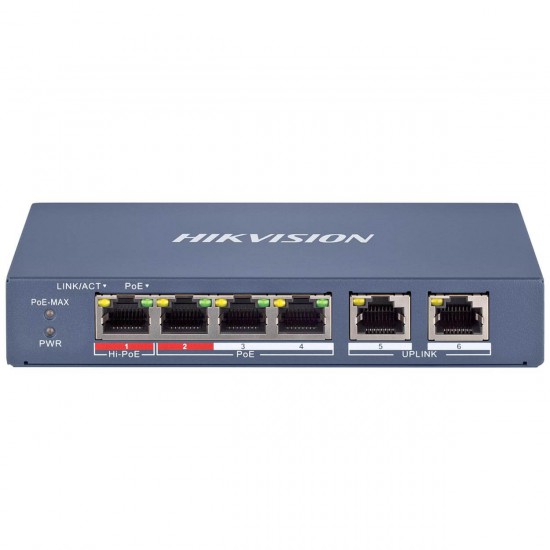

Compact and Powerful 6-Port Cloud-Managed PoE Switch with Advanced Features

This 6-port managed PoE switch combines a compact design with extensive control and monitoring capabilities, making it ideal for small businesses, offices, and surveillance systems. The four PoE ports support powering connected devices with PoE+ up to 30W, while Port 1 offers Hi-PoE up to 60W. With a total PoE budget of 60W, the switch can power multiple devices without the need for external adapters.

The switch supports PoE transmission up to 300 meters and Ethernet transmission up to 100 meters. Its Extended mode ensures stable operation of remote devices even at reduced speeds. Two Uplink ports provide fast connectivity to the rest of your network infrastructure.

Functionality includes Port Isolation, PoE Watchdog, VLAN, Loop Prevention, topology visualization, and health monitoring with real-time alerts. This ensures reliable operation and protection against disruptions, while allowing easy remote management, firmware upgrades, and log reviews. A switching capacity of 1.2Gbps ensures smooth data transfer even in high-traffic networks.

The built-in surge protection up to 6kV, stable 48Vdc power supply, and compact form factor make this switch reliable for installation in tight spaces and harsh environments, supporting a variety of network configurations.

Key Features of the 6-Port Managed PoE Switch with Hi-PoE and Real-Time Monitoring

• 6-port smart Cloud-managed PoE network switch
• 4 × 10/100 Mbps Fast Ethernet ports + 2 × 10/100 Mbps Uplink Ethernet ports
• Hi-PoE support 60W (Port 1), PoE+ support 30W IEEE 802.3af/at (Ports 2–4)
• Total PoE budget 60W; PoE transmission up to 300 m (Ports 1–4)
• Ethernet transmission up to 100 m; Extended mode supports operation up to 300 m (10 Mbps/Cat5e)
• Port Isolation / PoE Watchdog / VLAN / Loop Prevention
• Remote upgrade, reset, log review, and configuration support
• Topology and network status visualization
• Health monitoring and real-time alerts
• Switching capacity: 1.2 Gbps
• Built-in 6kV surge protection
• Power supply: 48Vdc/1.35A
• Dimensions: 145 × 25.6 × 68.45 mm
