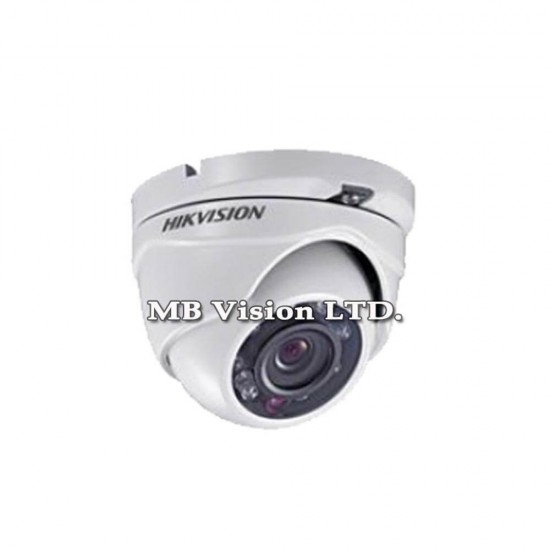

A cost effective CCTV camera that can be used inside or outdoors.
Robust yet stylish eyeball vandal resistant dome camera offers superb image quality, with a built-in Infra-Red night vision range of up to 20 meters with adaptive smart IR. This high resolution camera has a 3.6mm high quality lens and can be wall or ceiling mounted.
Tough cast alloy construction enables this camera to endure violent physical attacks whilst maintaining functionality, a solid security solution and effective in the dark thanks to the IR LED's.
A flat optical plane on the face of the camera, (rather than the traditional bubble shape) further reduces IR reflection, eliminating the bounce back effects of having IR light emitting through a curved surface, (this is especially true of external cameras as rain drops on the glass ruin the picture, add an additional IR light source and you have IR light bouncing all around the inside of your camera basically causing the camera to blind itself with too much light) the split glass lenses on the camera also eliminate IR refraction in the viewing area, effectively making IR bleed through impossible and further improving picture quality.
WHITE: DS-2CE55A2P-IRM
Technical Specifications
- 1/3” Digital Image Sensor, (DIS)
- 700 TVL resolution
- Up to 20m IR range
- True day / night
- IP66 rating
- All-metal design
Camera
- Image Sensor: 1/3” DIS
- Signal System: PAL/NTSC
- Effective Pixels: 976(H)×496(V)
- Min. Illumination: 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Shutter Time: 1/25(1/30) s to 1/15,000 s
- Lens: 3.6 mm
- Angle of view: 68.4° (3.6 mm)
- Lens Mount: M12
- Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
- Day& Night: IR cut filter with auto switch
- Horizontal Resolution: 700 TVL
- Synchronization: Internal Synchronization
- Video Output: 1Vp-p Composite Output (75Ω/BNC)
- S/N Ratio: More than 62 dB
General
- Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)
- Humidity 90% or less (non-condensing)
- Power Supply: 12 V DC±10%
- Power Consumption: Max. 1.8W
- (Max. 4W with IR cut filter on) MAX DRAW 0.34A
- Weather Proof: IP66
- IR Range: Approx 10 to 20 meters
- Dimension: 89.6 × 59.1 mm (3.53” × 2.33”)
- Weight: 400g (0.88 lbs)
