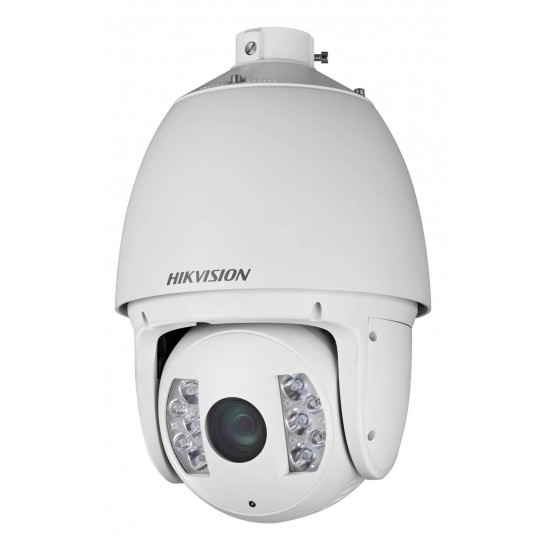

Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A

Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
Out Of Stock
Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
Speed dome security camera Hikvision, 23x optical, 18x digital zoom, IR (night vision) up to 100m DS-2AE7023I-A
0 reviews - Write a review
441.10€
VAT excl: 441.10€
  • Stock: Out Of Stock
  • Model: DS-2AE7023I-A
  • Weight: 8.00kg
  • SKU: DS-2AE7023I-A
4679 views
Add to Cart
Ask Question
  • Image Sensor: 1/3" SONY CCD
  • Effective Pixels: PAL:976(H)×582(V), NTSC:976(H)×494(V)
  • Horizontal Resolution: 700TVL
  • Signal System: PAL/NTSC
  • Min.illumination: Color: 0.02Lux(F1.6, AGC ON), B/W: 0.002Lux(F1.6, AGC ON)
  • 0 lux with IR
  • White Balance: Auto / Manual / ATW / Indoor / Outdoor
  • AGC: Auto/Manual
  • S/N Ratio: ≥ 50dB
  • DNR: 3D DNR
  • BLC: ON/OFF
  • WDR: Support
  • Shutter time: PAL: 1-1/10,000s, NTSC: 1-1/10,000s
  • Day&Night: ICR
  • Digital Zoom: 16x
  • Privacy Masking: 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
  • Focus Mode: Auto / Semi-automatic / Manual
Lens
  • Focal Length: 4-92mm, 23X
  • Zoom Speed: Approx.3.0s(Optical Wide-Tele)
  • Angle of View: 49-2.2 degree(Wide-Tele)
  • Minimum Working Distance: 10-1500mm (Wide-Tele)
  • Aperture Range: F1.6-F3.7
Pan & Tilt
  • Pan Range: 360° endless
  • Pan Speed: Pan Manual Speed: 0.1°-160°/s,
  • Pan Preset Speed: 240°/s
  • Tilt Range: -15°-90° (Auto Flip )
  • Tilt Speed: Tilt Manual Speed: 0.1°-120°/s,
  • Tilt Preset Speed: 200°/s
  • Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
  • Number of Preset: 256
  • Patrol: 10 patrols, up to 32 presets per patrol
  • Pattern: 5 patterns, with the total recording time not less than 15 minutes
  • Power-off Memory: Support
  • Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
  • PTZ Position Display: ON/OFF
  • Freeze Frame: Support
  • Password Protection: Support
  • Zone Scanning/Display: Scanning within programmed zone, display zone title
  • Camera Title: Programmable title display
  • Compass: Support , the north can be set
  • Scheduled Task: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
  • RS-485 communication diagnosis: Support
  • Manchester code communication diagnosis: Support
Infrared
  • IR Range: 120m
  • IR irradiation angle: Adjustable by zoom
  • Input & Output
  • Monitor Output: 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
General
  • Menu Language: English / Chinese
  • RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Power Supply: 24VAC(for –A moel); 12VDC(for –D model)
  • Power Consumption: Max. 50W
  • Working Temperature /Humidity: -30 °C-65°C(-22°F-149°F)
  • 90% or less
  • Protection Level: IP66 standard, TVS 4,000V lightning protection, surge protection and voltage transient protection
  • Mounting: Various mounting modes option
  • Dimensions: Φ220×353.4mm (Φ8.66”×13.91”)
  • Weight(approx.): 4.5kg(9.92 Ibs)
